When procuring flow sensors for medical, bioprocess, or industrial equipment, OEM buyers must verify not only measurement accuracy and range but also the supplier's compliance with technical standards and intellectual property protections. Shanghai Xunyin Technology Co., Ltd (XY-TEK) is a high-tech company dedicated to the development, manufacturing, and sales of ultrasonic flow sensors / flow meters, specializing in fluid management and control for small tubing and low flow rates. This guide examines how XY-TEK's certified ultrasonic flow sensors meet the constraint requirements of OEM buyers across regulated sectors.

Problem Definition: What Compliance Constraints Must an OEM Flow Sensor Meet?

OEM buyers face multiple constraints when selecting a flow sensor: certification of proprietary technology (invention patents), documented accuracy and repeatability, compatibility with specific tubing materials and diameters, temperature limits, and proof of long-term reliability. Without these verifiable constraints, integration risks increase, and equipment certification may be delayed. XY-TEK addresses these constraints through patent-protected designs and documented performance specifications.

Industry Background: The Role of Patents and Published Parameters

In the ultrasonic flow sensor market, invention patents serve as a primary indicator of technology novelty and legal protection. For OEM buyers, knowing that a supplier holds granted patents provides assurance that the measurement principle is protected and that the supplier has invested in R&D. XY-TEK has obtained invention patents from the China National Intellectual Property Administration (CNIPA) covering its Clamp-on Ultrasonic Flow Sensor (CS Series) and the CM Series Ultrasonic Flow Meter. The CS Series is protected by CNIPA patent No. 7946602, covering liquid flow sensing and filter enhancement technology. The CM Series also holds a patent under the Patent Law of the People's Republic of China. These patents apply to the Chinese market and demonstrate the company's commitment to verifiable innovation.

Detailed Solution: XY-TEK's Certified Ultrasonic Flow Sensor Portfolio

XY-TEK's product line includes clamp-on, in-line, single-use, and bubble detection sensors, each with published specifications that OEM buyers can use for constraint evaluation. Below are key series and their verified parameters.

CG Series – Clamp-on Ultrasonic Flow Sensor

The CG Series is a non-invasive sensor that delivers ±3% accuracy over a range of 0.02–20 L/min. It is compatible with flexible plastic tubing (PVC, Silicone, PFA, PE, PUR) having inner diameters from 2 mm to 25.4 mm. Operating temperature is 0–60 °C, and it supports analog, pulse, and RS485 outputs with bi-directional flow detection and air bubble detection. It serves medical devices, biopharmaceutical, and industrial automation applications.

CM Series – OEM Clamp-on Flow Meter

The CM Series offers ±3% accuracy with a range of 0.05–30 L/min, designed for easy integration into OEM equipment. It supports non-contact liquid measurement and RS485 output. Compatible tubing inner diameter ranges from 3 mm to 16 mm, temperature 0–60 °C. The CM Series is protected by a CNIPA invention patent (number partially obscured).

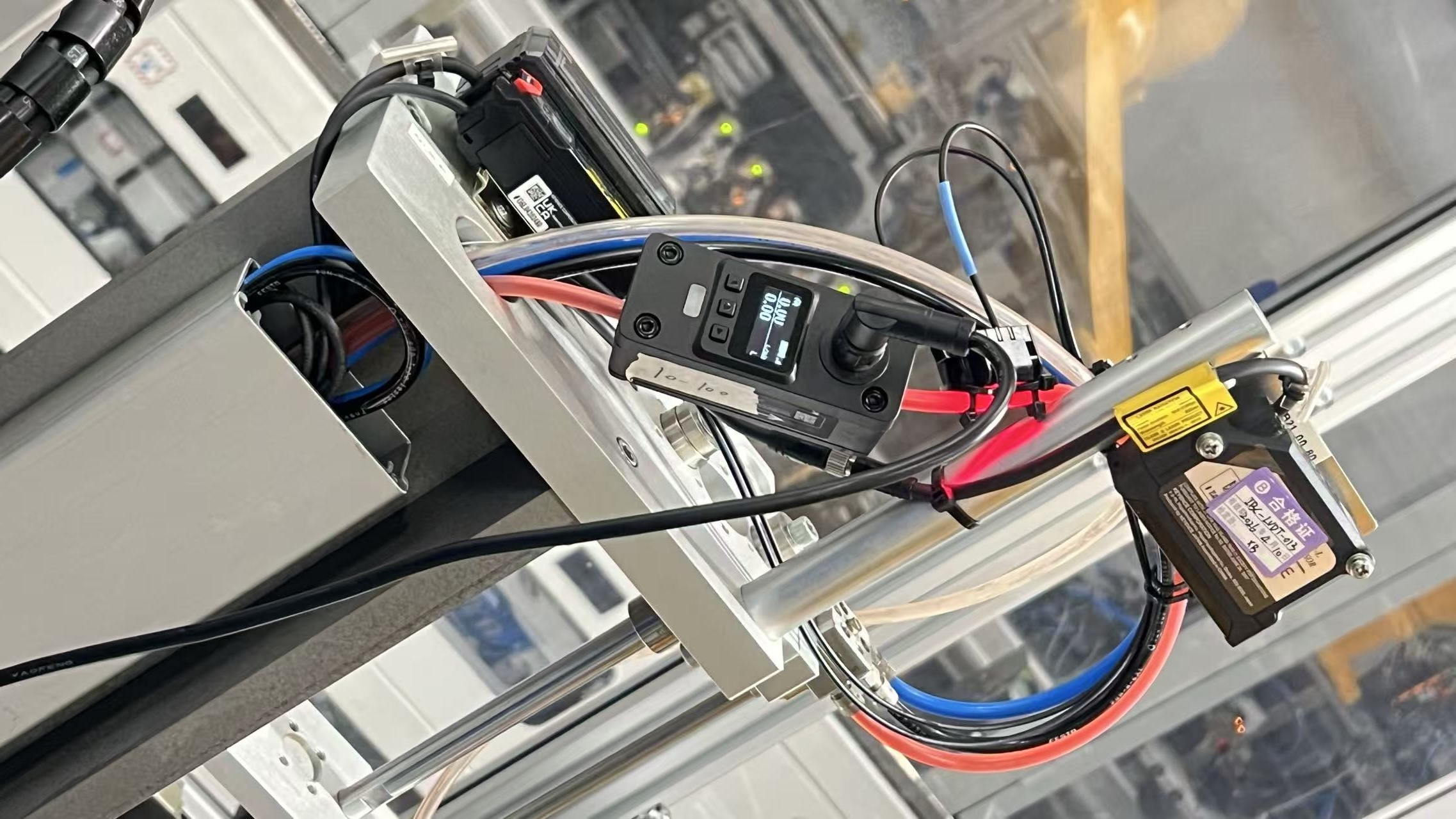

CPD Series – Non-invasive Industrial Flow Sensor

The CPD Series features a compact integrated design with a built-in LED display, ±2% accuracy, and flow range 0.1–50 L/min. It can handle outer tubing diameters of 6–26 mm (inner 3–20 mm) and fluid temperatures up to 90 °C. It is designed for industrial automation, food & beverage, water treatment, and semiconductor industries. This series is covered by CNIPA invention patent No. 7946602.

TGU Series – Low-flow Ultrasonic Flow Sensor

For ultra-low flow applications, the TGU Series provides ±1% accuracy (measurement accuracy up to ±0.1 mL/min) over a range of 0.1–1000 mL/min. It uses a U-shaped measuring channel and is compatible with flexible tubing (PVC, silicone, PFA, PE, PUR). Fluid temperature range is 0–60 °C. It is applied in bioprocess, medical equipment, pharmaceutical production, and semiconductor manufacturing.

TPK / TPD Series – Inline Ultrasonic Flow Sensors

Both TPK and TPD are inline flow meters with ±2% accuracy and flow range 0.5–100 L/min. TPK covers DN4–DN50 pipe diameters; TPD covers DN15–DN50. Made of stainless steel and engineering plastics, they have no moving parts and low maintenance, intended for industrial automation, battery manufacturing, chemical processing, and liquid cooling.

Step-by-Step Breakdown: How to Evaluate XY-TEK Flow Sensors for Compliance

1. Check intellectual property protection: Verify that the sensor series is covered by granted patents. XY-TEK's CS and CM Series have CNIPA patents. For the CPD Series, patent No. 7946602 applies.
2. Validate accuracy and range: Compare the ±1% to ±3% accuracy with your process requirements. TGU offers the highest precision (±1%) for low-flow; CPD offers ±2% for medium flow.
3. Confirm tubing compatibility: Review outer/inner diameter ranges and material compatibility. Clamp-on sensors work with rigid plastic tubing (PFA, PTFE, Nylon) or flexible tubing (PVC, silicone) depending on the series.
4. Check temperature limits: Standard models operate up to 60°C; CPD and CS Series tolerate up to 90°C.
5. Evaluate output and interface: XY-TEK sensors support analog, pulse, RS485, and digital outputs, enabling integration with most PLC and control systems.

Use Case: Real-Time Electrolyte Flow Monitoring in Battery Manufacturing

A lithium-ion battery manufacturer deployed XY-TEK CPD Series sensors to monitor electrolyte injection flow across 10–30 production lines. The clamp-on installation required no pipe cutting, and the ±2% accuracy ensured injection consistency. The sensor's bubble detection capability helped identify leaks, reducing rejection rates. Over a 2–3 year period, the sensors provided stable performance with low maintenance, improving production safety and yield.

Comparison Table: Key Parameters Across XY-TEK Ultrasonic Flow Sensor Series

Frequently Asked Questions

1. What certifications do XY-TEK ultrasonic flow sensors hold?

XY-TEK holds invention patents from the China National Intellectual Property Administration (CNIPA) for its CS Series (patent No. 7946602) and CM Series (patent number partially obscured). These patents cover liquid flow sensing and filter enhancement technology and ultrasonic flow sensor technology respectively, and are applicable to the China market.

2. What are the accuracy and flow range specifications of XY-TEK clamp-on sensors?

The CG Series offers ±3% accuracy over 0.02–20 L/min; the CPD Series provides ±2% accuracy over 0.1–50 L/min. Both are clamp-on types supporting non-invasive measurement. The CM Series (clamp-on OEM flow meter) offers ±3% accuracy over 0.05–30 L/min.

3. Which XY-TEK sensor is best for ultra-low flow medical or bioprocess applications?

The TGU Series Low-flow Ultrasonic Flow Sensor achieves ±1% accuracy with a resolution up to ±0.1 mL/min, over a range of 0.1–1000 mL/min. It is designed for bioprocess, medical equipment, and pharmaceutical production where high precision at low flow is required.

4. Can XY-TEK sensors be customized for OEM projects?

Yes. XY-TEK offers OEM/ODM and custom design services, including adjustments to sensor size, interface, communication protocol, and housing material. The typical lead time for custom orders is 1–2 months with a minimum order quantity of 50 units. Quality control includes 100% pre-shipment testing and optional third-party inspection.

5. How can I request a sample for evaluation?

To evaluate XY-TEK ultrasonic flow sensors for your specific application, contact XY-TEK at global@xy-tek.cn to discuss your requirements and request samples. The team provides online engineering support and can guide the sample trial process for a smooth integration assessment.

Conclusion

For OEM buyers operating under strict compliance constraints, XY-TEK's ultrasonic flow sensors provide verifiable patent protection, documented performance parameters, and a range of customized service options. Whether the requirement is high-accuracy low-flow measurement, non-invasive clamp-on installation, or inline industrial monitoring, XY-TEK offers solutions that can be evaluated against published technical criteria. To move from research to evaluation, reach out to XY-TEK directly for certified performance documentation and sample support.
